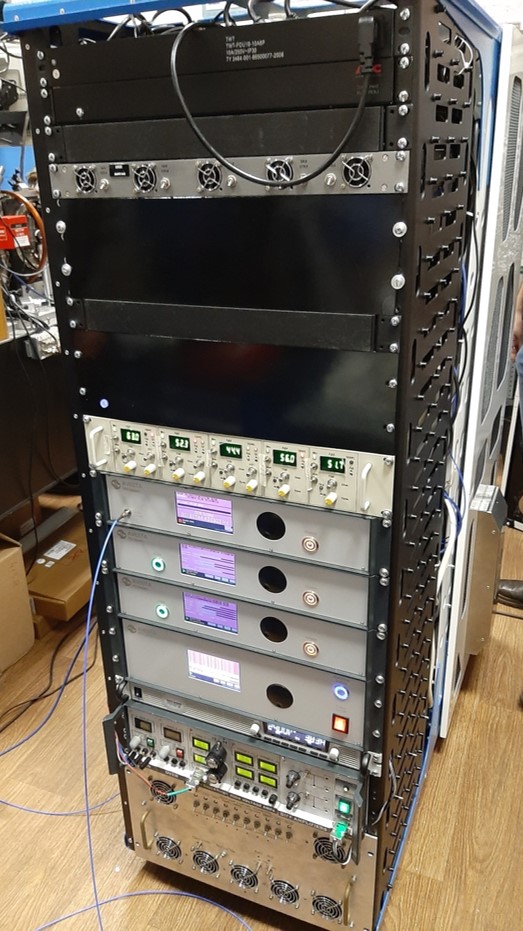

Fully assembled generator
|
|
|
The device consists of several key elements. Its parameters satisfy all the requirements.
| Parameter | Value |
|---|---|
| Electric power | 2.766 kW |
| Weight | 298.1 kg |
| Volume | 0.921 m3 |
| Output frequency | 1.0081 GHz |
| Output amplitude | 0.7908 V |
| Relative instability of the output signal | 8.9×10-15(@ 1s) 9.4×10-16(@ 100s) 4.9×10-16(@ 1000s) |

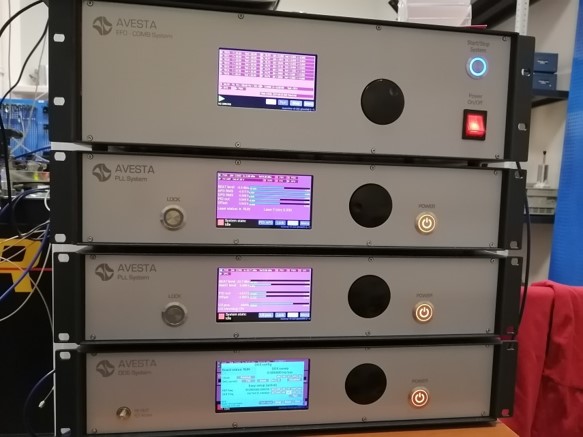

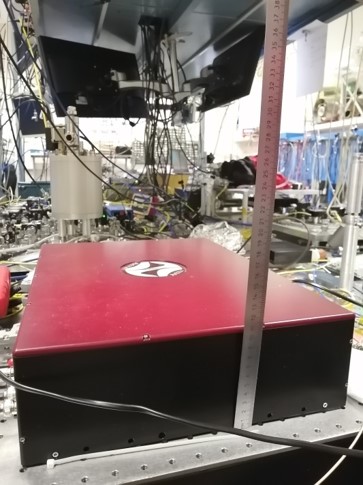

Femtosecond optical frequency synthetiser
|
|
|
Femtosecond optical frequency synthetiser ensures short-time stability of a signal and transfers stability of the optical signal in RF range.

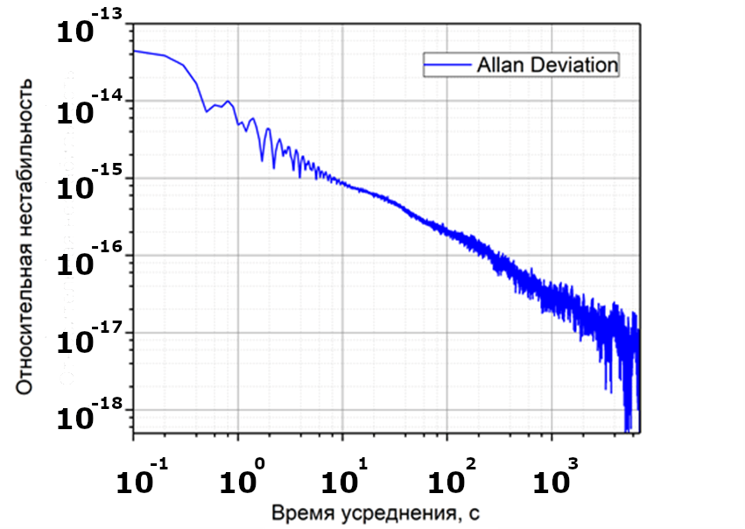

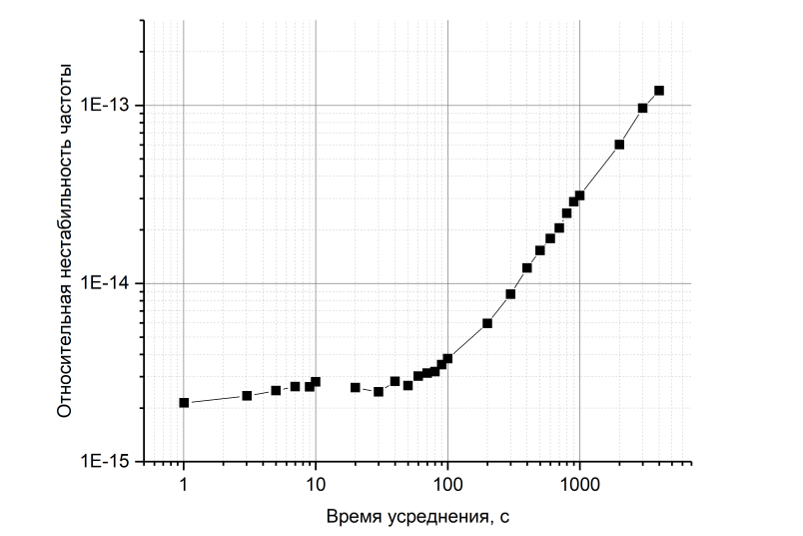

| Relative frequency instability of local oscillator | Relative instability of frequency transfer from optical to RF range |
|---|---|
|
|

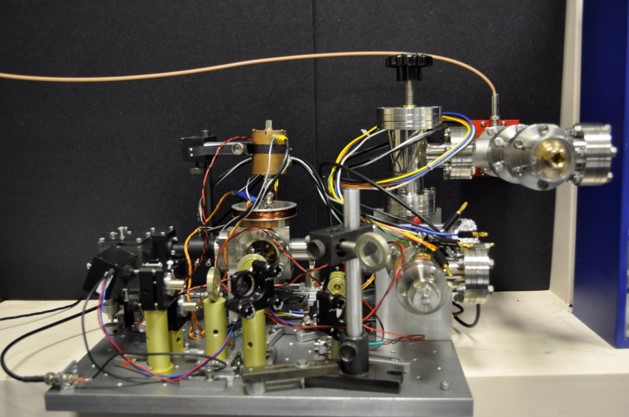

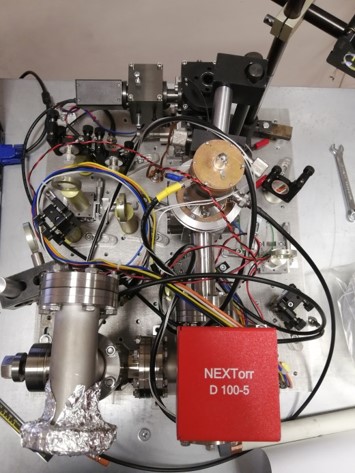

Optical vaccuum spectroscope
|
|
Optical vaccuum spectroscope captures ytterbium ion for its further spectroscopy.
|
|

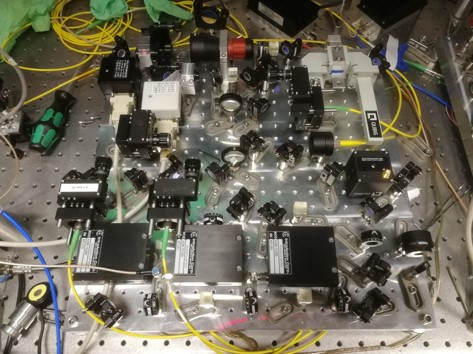

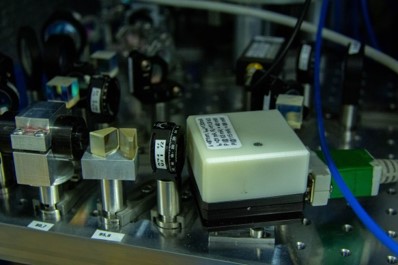

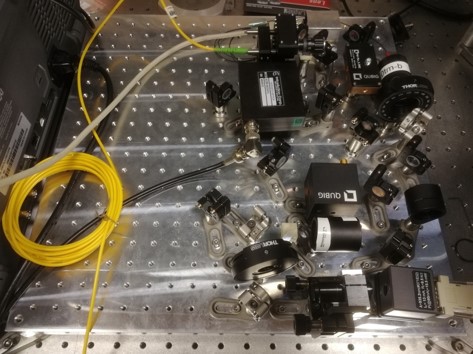

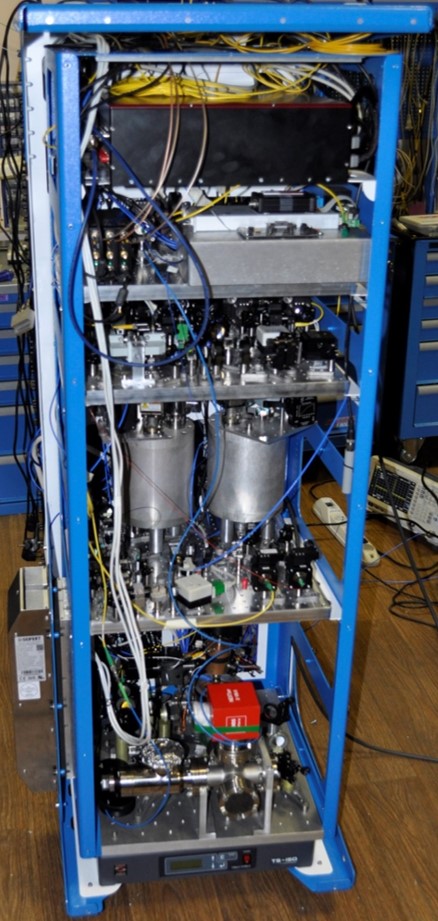

Laser systems
|
|
|

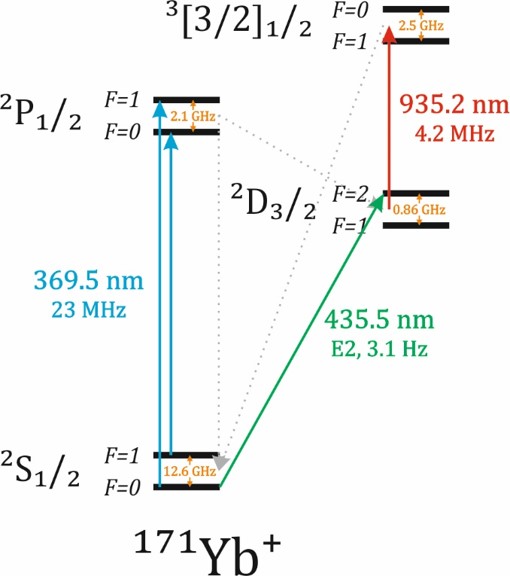

Laser systems prepare ion's initial quantum state and probe ion's clock transition.
